miR-122-5p regulates the tight junction of the blood-testis barrier of mice via occludin

miR-122-5p can regulate the tight junction

Basic and Clinical Andrology volume 31, Article number: 7 (2021) Cite this article

Abstract

Background

Occludin protein is the primary assembling protein of TJs and the structural basis for tight junction formation between Sertoli cells in the spermatogenic epithelium. The expression of miR-122-5p and occludin are negatively correlated. In order to investigate the regulation mechanism of miR-122-5p on occludin and TJ, the present study isolated primary Sertoli cells from C57BL/6 mice, identified a transcription factor of miR-122-5p in testicle, studied the modulating loci of miR-122-5p on occludin using a dual-luciferase reporter assay, analyzed the regulate of miR-122-5p on the expression of occludin with real-time RT-PCR and Western blot, and studied the effect of miR-122-5p on the tight junction using a Millicell Electrical Resistance System.

Results

The relative luciferase activity in the pcDNA-Sp1 + pGL3-miR-122-5p promoter group was significantly higher than that in the pcDNA-Sp1 + pGL3-basic group, which suggests that transcript factor Sp1 promotes the transcription of miR-122-5p. The relative luciferase activity in the occludin 3′-UTR (wt) + miR-122-5p mimic group was significantly lower than that in the other groups (p < 0.01), which indicates that miR-122-5p modulates the expression of occludin via the ACACTCCA sequence of the occludin-3’UTR. The levels of occludin mRNA and protein in the miR-122-5p mimic group were significantly lower than that in the other groups (p < 0.05), which indicates that miR-122-5p reduces the expression of occludin. The trans-epithelial resistance of the miR-122-5p mimic group was significantly lower than that of the blank control group after day 4 (p < 0.05), which indicates that miR-122-5p inhibited the assembly of the inter-Sertoli TJ permeability barrier in vitro.

Conclusion

These results displayed that miR-122-5p could regulate tight junctions via the Sp1-miR-122-5p-occludin-TJ axis.

Abstrait

Contexte

La protéine occludine est. la principale protéine d’assemblage des jonctions serrées (JS), et la base structurelle pour la formation de ces jonctions entre les cellules de Sertoli dans l’épithélium séminifère. L’expression de miR-122-5p et de l’occludine sont négativement corrélées. Afin d’étudier le mécanisme de régulation de l’occludine et des TJ par miR-122-5p, nous avons, dans la présente étude, isolé des cellules primaires de Sertoli de souris C57BL/6, identifié un facteur de transcription de miR-122-5p dans le testicule, étudié les loci de miR-122-5p modulants l’occludine par le biais d’un système rapporteur à 2 luciférases, analysé la régulation de miR-122-5p sur l’expression de l’occludine par qRT-PCR et Western blot, et étudié l’effet de miR-122-5p sur les jonctions serrées à l’aide d’un Système de Résistance Electrique Millicell.

Résultats

L’activité relative de la luciférase dans le groupe du promoteur de pcDNA46 Sp1 + pGL3-miR-122-5p était significativement plus élevée que celle observée dans le groupe pcDNA-Sp1 + pGL3-basique, ce qui suggère que le facteur de transcription Sp1 favorise la transcription de miR-122-5p.

L’activité relative de la luciférase dans le groupe 3′-UTR (wt) + miR-122-5p mimant l’occludine était significativement inférieure à celle des autres groupes (p < 0,01), ce qui indique que miR-122-5p module l’expression de l’occludine via la séquence ACACTCCA en 3′ UTR de l’occludine.

Les niveaux d’ARNm et de protéine occludine dans le groupe mimant miR-122-5p étaient significativement inférieurs à ceux des autres groupes (p < 0,05), ce qui indique que miR-122-5p inhibe l’expression de l’occludine.

La résistance transépithéliale du groupe mimant miR-122-5p était significativement inférieure à celle du groupe témoin vierge après le jour 4 (p < 0.05), ce qui indique que miR-122-5p inhibe in vitro l’assemblage des jonctions serrées de la barrière de perméabilité inter-Sertolienne.

Conclusions

Ces résultats montrent que miR-122-5p pourrait réguler les jonctions serrées via l’axe Sp1-miR-122-5p-occludine.

Introduction

MicroRNAs (miRs) are a family of small noncoding ribonucleic acid (RNA) with a length of ~ 22 bp and carry a 5′-phosphate terminal and 3′-hydroxy terminal. The major functions of miRs include the modulation of transcription, RNA cutting and trimming, messenger ribonucleic acid (mRNA) stabilization and translation, protein stabilization and transportation, chromosome formation and structure stabilization, and cellular development [1]. The role of miRs in spermatogenesis became a hotspot in research of the male reproductive system. Different miRs are involved in the proliferation [2,3,4] and differentiation of spermatogenic cells [5] and spermatogenesis [6]. Although miRs were closely correlated with the modulation of spermatogenesis, the detailed mechanisms are not clear [7, 8].

miR-122-5p is a transcript processed from the Hcr gene, and it plays an important role in modulation of the cell cycle, cell proliferation and apoptosis [9]. miR-122-5p is related to multiple diseases, e.g., it is a prognosis marker for acute heart stroke [10], affects the proliferation of keratinocytes [11], inhibits the migration of melanoma cells [12], suppresses cellular differentiation in nasopharyngeal carcinoma [13], regulates cell proliferation in gastric cancer [14] and correlates with hepatic cancer [9, 15]. However, there are no related reports of miR-122-5p in spermatogenesis.

The blood-testis barrier (BTB) between the seminiferous tubule and blood resides at the level of the myoid layer surrounding the seminiferous tubules, and primarily between Sertoli cells, where tight junctions (TJs) occlude the paracellular spaces at the basolateral membranes between adjacent Sertoli cells [16,17,18]. TJs are the major structure of the BTB, and abnormal TJs prevent the migration of spermatogenic cells in the seminiferous tubule, which results in a reduction in sperm number [19,20,21]. Occludin protein is the primary assembling protein of TJs [22] and the structural basis for TJ formation between Sertoli cells in the spermatogenic epithelium. The abnormal opening/resealing of occludin affects spermatogenesis [23]. Our previous study demonstrated a negative correlation between miR-122-5p expression and occludin protein in semen [24]. To further investigate the mechanism of miR-122-5p in the modulation of occludin and TJs, the present study isolated primary Sertoli cells (SCs), identified a transcription factor of miR-122-5p and investigated the modulating locus of occludin by miR-122-5p in SCs of mice, analyzed the effect of miR-122-5p on occludin expression and examined the effect of miR-122-5p on TJs using an in vitro model.

Materials and methods

Cell culture and identify

Fourteen-day-old C57BL/6 mice were provided by the Chongqing Enswell Biotechnology Co., Ltd., Chongqing, China. Animals were kept in a room with a 12-h light:1- h dark (12 h–12 h) cycle and temperature of 23–25 °C. Animals were provided food and water ad libitum. The Experimental Animal Ethics Committee of Fuyang Normal University, China approved the experiments (Grant No. 20200006). SCs were isolated from the testicles of 14-day-old C57BL/6 mice, as previously reported [25]. Briefly, the testicle was digested with 0.125% trypsin for 20 min, followed by 0.1% collagenase for approximately 30 min after removal of the capsule. The cell suspension was cultured at 35 °C in a 5% CO2 incubator in Dulbecco’s modified Eagle medium/Ham F-12 (DMEM/F12) containing 10% fetal calf serum and 100 U/ml penicillin. After 48 h, the cells were subjected to hypotonic treatment with 20 mM Tris (pH 7.4) to lyse the residual spermatogonia and obtain SCs.

For identify analysis the SCs were fixed with 4% paraformaldehyde solution for immunohistochemical staining. Antigen retrieval was performed at 95 °C in citrate buffer pH 6.0, 6.4 M sodium citrate dihydrate, 1.6 M citric acid monohydrate for 40 min. The slides were cooled at room temperature for 20 min and washed 3 × 3 min with Tris buffer pH 7.6, 0.15 M sodium chloride, 0.05 M Trizma. The slides were block with peroxidase for 5 min and washed as above. The slides were incubated for 30 min with the primary anti-Wilms tumor protein1(anti-WT1) [26] (1:100 dilution, abcam, USA). After washed three times with phosphate buffer saline (PBS) for 3 min each, the horseradish peroxidase-labeled secondary antibody (1:800 dilution, abcam, USA) was added dropwise, then incubated at 37 °C for 30 min, followed by the substrate-chromogen solution (3,3′-diaminobenzidine), and finally counter stained with hematoxylin.

Analysis of miR-122-5p transcript factor in testicle

Transcription factors that bound the miR-122-5p promoter were predicted using the JASPAR database [27] with the 3 requirements: 1) binding in the promoter core, 2) higher score and 3) correlation with the BTB.

One day prior to transfection, the SCs of mice were inoculated in 24-well plates at a density of 1 × 105 cells/well after digestion with trypsin and cultured with DMEM in 5% CO2 incubator at 35 °C. After removal of the medium, the transfection reagent POLO3000 (Shanghai R&S Biotechnology Co. Ltd., Shanghai, China) was added (3.0 μL/well) together with 25.0 μL of culture medium. A mixture of plasmid (Table 1) or culture medium (21.0 μL) was added according to different treatments: Group A (blank control) with culture medium; Group B with plasmids of pcDNA3.1 + pGL3-basic+pRL-TK (pcDNA3.1 basic group); Group C with plasmids of pcDNA3.1+ pGL3-miR122-5p promoter + pRL-TK (pcDNA3.1 miR-122-5p promoter group); Group D with plasmids of pcDNA-Sp1 + pGL3-basic+pRL-TK (Sp1 basic group); Group E with plasmids of pcDNA-Sp1 + pGL3-miR122 promoter +pRL-TK (Sp1 miR122-5p promoter group); Group F with plasmids of pcDNA-GATA4 + pGL3-basic+pRL-TK (GATA4 basic group); and Group G with plasmids of pcDNA-GATA4 + pGL3-miR122 promoter +pRL-TK (GATA4 miR122-5p promoter group). The pcDNA3.1 plasmid (20.0 nM) and pGL3-basic plasmid (20.0 nM) were added in 10.0 μL each, and the pRL-TK plasmid (20.0 nM) was added in 1.0 μL. The cells were placed at room temperature for 5 min then in an incubator at 37 °C for 15 min. After transfection for 6 h, the culture medium was discarded and replaced with fresh medium, and the cells were continuously cultured in the incubator. After 48 h of transfection, the transfection ratio was examined under fluorescence microscopy. The cells were rinsed with PBS 2–3 times and incubated with a lysis solution (100 μL/well) on ice for 15–20 min. The activity of firefly luciferase and Renilla luciferase was examined using a dual-luciferase reporter assay. Each experiment was repeated three times using different batches of SCs.

Table 1 Resources of plasmids used in the study
Full size table

Effect of miR-122-5p on the expression of occludin

The SCs of mice were cultured in 5% CO2 at 37 °C. One day prior to transfection, the cells were digested with trypsin and inoculated in 24-well plates (1 × 105 cells/well). For transfection, the medium was replaced by a mixture (3.0 μL of transfection reagent, 0.5 μL of 100.0 nM miR-122-5p and 50.0 μL medium) with the following plasmids (0.5 μL at 100.0 nM; Table 1): Blank control group with only medium; miR-122-5p mimic negative control (NC) group; miR-122-5p mimic group; miR-122-5p inhibitor NC group; and miR-122-5p inhibitor group. The cells were cultured in an incubator after gentle shaking, and the medium was replaced with fresh medium after 6–8 h of transfection. The cells were collected after 48 h of transfection. Total RNA was isolated using TRIzol (Invitrogen, Carlsbad, CA) according to manufacturer’s instructions. Total RNA concentration was quantified by absorbance at 260 nm using a SmartSpec 3000 spectrophotometer (Bio-Rad, Hercules, CA). RNA integrity was assessed using the Agilent 2100 Bioanalyzer (Agilent Technologies, Santa Clara, CA) and samples with RNA integrity number (RIN) > 9 were used in the studies.

The qRT-PCR was performed using SYBR® Green I and the TransStart Green qPCR SuperMix in a Lightcycler 96 (Roche, US) according to the manufacturer’s instructions. Briefly, 500 ng of total RNA obtained from SCs was reverse-transcribed using Megaplex reverse transcription (RT) Primers and the TaqMan miRNA reverse transcription kit in a total of 7.5 μL volume. The primers for occludin were forward, AGACCTGATGAATTCAAACCCA and reverse, CCACACAGGCAAATATGGCG. The polymerase chain reaction (PCR) system consisted of 2 x SYBR® Green Mix (10.0 μL, Roche, US), primer mix (1.0 μL), template cDNA (5.0 μL) and ddH2O (4.0 μL). The following reaction conditions were used: 2 min of initial denaturation at 95 °C followed by 40 cycles of 15 s at 95 °C for denaturation, 20 s at 60 °C for annealing and 20 s at 72 °C for extension. Expression was calculated using the 2 - △△Ct method. The primers of miR-122-5p were forward, CCTGAGTGTGACAATG and reverse, GAGCAGGCTGGAGGA. The reaction system consisted of 2x SYBR® Green Mix (10.0 μL, Roche, US), primer mix (1.0 μL), template cDNA (5.0 μL) and ddH2O (4.0 μL). The reaction conditions for qRT-PCR included initial denaturation at 94 °C for 4 min followed by 35 cycles of denaturation at 94 °C for 20 s, annealing at 60 °C for 30 s and extension at 72 °C for 30 s. U6 was used as internal control. The expression ratio was calculated using the 2 - △△Ct method [26].

The total protein was extracted according to the manufacturer’s instructions. Total protein concentrations were measured using the bicinchoninic acid (BCA) method, boiled with 5x loading buffer at 100 °C for 10 min, centrifuged and separated using SDS-PAGE electrophoresis under 100 V for 1.5 h. The proteins were transferred to NC membranes under 300 mA constant current and incubated with 50 mL trimethylaminomethane tween (TTBS) (20.0 mmol/L Tris, pH 7.5, 0. 5 g/L Tween 20, 8.0 g/L NaCl) containing 50 g/L skim milk for 2 h. The NC membrane was incubated with a primary mouse occludin antibody (ab216327, 1:2000, Abcam) or ß-actin antibody (ab179467, 1:2000, Abcam) at 4 °C overnight. Membranes were washed with TTBS 3 times for15 min and incubated with an HRP-conjugated rabbit anti-mouse IgG (111–035-008, 1:2000, Jackson) at room temperature for 2 h. The NC membrane was rinsed with TTBS 3 times, 10 min each time, incubated with novaECL for 1 min and exposed to film in the dark. The band density was scanned using a digital gel imaging system, and the gray value of bands was measured. The expression of occludin was calculated as the ratio of occludin to ß-actin, which served as the internal referral. Each experiment was repeated three times using different batches of Sertoli cells.

Analysis of potential modulation site of miR-122-5p on occludin-3’UTR

The potential targeting site of miR-122-5p modulation on the occuldin-3’UTR was analyzed online using TargetScanMouse (http://www.targetscan.org/cgi-bin/mmu_71/view_gene.cgi?rs=ENSMUST00000069756.5&taxid=10090&members=miR-122-5p&subset=1&showcnc=0&shownc=0&shownc_nc=0&showncf1=0&showncf2=0). The results indicated one potential miR-122-5p modulation site located in the 210–217 region of the occuldin-3′ UTR. Wild-type and mutated occuldin-3′ UTR (Mouse Ocln ENSMUST00000069756, 3′ UTR, length: from 1 to 1500) were synthesized by Shanghai Sangon. In contrast to the wild-type occuldin-3′ UTR, the mutant occludin-3′ UTR lost ACACTCCA at 210–217.

The SCs of mice cultured in an incubator with 5% CO2 at 37 °C were treated with trypsin 1 day prior to transfection and inoculated in a 24-well plate (1 × 105 cells/well). The transfection system added to each well was mixed with 3.0 μL transfection reagent POLO 3000 (Shanghai R&S Biotechnology Co. Ltd., Shanghai, China), 0.5 μL plasmid (Table 1) at 20.0 nM and 50.0 μL culture medium. The cells were treated differently according to the following groups: Group A with vehicle (blank control); Group B with occludin 3′-UTR (Wt, WT); Group C with occludin 3′-UTR (wt) + miR-122-5p mimic NC (Wt + Mimic NC); Group D with occludin 3′-UTR (wt) + miR-122-5p mimic (Wt + Mimic); Group E with occludin 3′-UTR (Mu) (Mu); Group F with occludin 3′-UTR (mu) + miR-122-5p mimic NC (Mu + Mimic NC); and Group G with occludin 3′-UTR (mu) + miR-122-5p mimic (Mu + Mimic). The medium was replaced with fresh medium after 8 h of culture in an incubator at 37 °C. The cells were rinsed with PBS 3 times, and 100.0 μL 1× lysis buffer was added for 15–20 min on ice after 48 h of transfection. After 48 h of transfection, the transfection ratio was examined under fluorescence microscopy. The lysate was collected and measured for the activities of luciferase using the Dual-Luciferase Reporter Assay System (Promega, E1910), according to the manufacturer’s instructions. Each experiment was repeated three times using different batches of Sertoli cells.

Assessing the integrity of inter-Sertoli TJ permeability barrier by measuring the TER across Sertoli cell epithelium

To examine the effects of miR-122-5p on the assembly and maintenance of inter-Sertoli TJ permeability barriers in vitro, primary Sertoli cells were isolated as described above and cultured at 1.2 × 106 cells/cm2 on Matrigel (1:7)-coated bicameral units (Millipore Corp., Bedford, MA), as previously described [28]. TJ assembly was monitored by trans-epithelial resistance (TER) across the Sertoli cell epithelia using a Millicell Electrical Resistance System, as previously described [29]. The SCs of mice were cultured with DMEM/F12 containing 10% fetal calf serum and 100 U/ml penicillin in an incubator with 5% CO2 at 37 °C. One day prior to transfection, the cells were digested with trypsin and inoculated at a concentration of 1.2 × 106 cells/cm2 in apical chambers of the bicameral units with 0.5 ml medium. The same medium (0.5 ml) was added to the basal chambers. After 12 h of culture in an incubator with 5% CO2 at 37 °C, the medium was replaced with fresh antibiotic-free medium. After another 6 h of culture, a mixture of 3.0 μL transfection reagent and 50.0 μL culture medium were added to each well, followed by 0.5 μL miR-122-5p mimic (50.0 nM) or miR-122-5p inhibitor (Table 1). After 6–8 h of transfection, the medium was replaced with fresh medium every 2–3 days. The TER was measured on days 1, 2, 3, 4, 5, 6, 7 and 8. Each experiment was repeated three times using different batches of Sertoli cells.

Statistical analysis

All data are expressed as the means ± SD. Statistical analysis was performed using GraphPad Prism 6. All experimental data were normally distributed. Differences between two groups were examined using t - test. Differences among different groups were examined using one-way ANOVA. The significant difference level was set as p < 0.05.

Results

Identification of SCs

The number of SCs in the testis determines both testis size and daily sperm production. Only immature SCs proliferate, so the final number of SCs was determined before adulthood. Sertoli cells proliferation occurs between days 12–15 in rodents [30]. So fourteen -day-old mice were selected in this study. For morphological analysis, the SCs were stained with hematoxylin-eosin. The results are showed in Fig. 1(a). The cell morphology was irregular. The nucleus was blue and the cytoplasm was pink. For identify analysis, the SCs were performed with immunohistochemical staining. The results were showed in Fig. 1(b). The cells were filled with WT1 which was one of marker protein of SCs [26]. The results suggested that the isolated cells were SCs.

Fig. 1
figure 1

For Morphological analysis, the SCs were stained with hematoxylin-eosin. The results were showed in (a). The cell morphology was irregular. The nucleus was blue and the cytoplasm was pink. For identify analysis the SCs were performed with immunohistochemical staining. The results were showed in (b). The cells were filled with WT1 which was one of marker protein of SCs. The results suggested that the isolated cells were SCs. Bar = 0.2 μm. SC:Sertoli cell

Full size image

Selection of transcript factor of miR-122-5p

First, JASPAR was used to predict the transcription factors that could bind to the mmu-mir-122-5p promoter. The results showed that 220 transcription factors could bind to the mmu-mir-122-5p promoter. Then, NCBI database was used to find which of the 220 transcription factors were related to BTB. The results showed that 14 transcription factors were closely related to BTB. Finally, Promoterscan was used to predict the core region of the promoter and to analyse which of the 14 transcription factors were able to bind near the core region of the promoter (1 K ~ 1.3 K) with a score greater than 9. After the above analysis, Sp1 and GATA4 were selected as the transcription factors of mmu-mir-122-5p in this study.

Identification of transcript factor of miR-122-5p in SCs

To verify the miR-122-5p promoter, pcDNA3.1 + pGL3-basic or pcDNA3.1 + pGL3-miR-122 promoter were cloned into SCs, and the relative luciferase activity was detected using the dual-luciferase reporter assay. The difference between two groups was compared with t-test. The relative luciferase activity in the pcDNA3.1 + pGL3-miR-122-5p promoter group and pcDNA3.1 + pGL3-basic group was 40.5063 ± 1.0126 and 8.6076 ± 1.8481. The value in the pcDNA3.1 + pGL3-miR-122-5p promoter group was significantly higher than the pcDNA3.1 + pGL3-basic group (p<0.05). This result suggested that the luciferase reporter plasmid of miR-122-5p promoter was successfully established. To analyze the transcriptional activity of Sp1 and GATA4 on miR-122-5p, Sp1 and GATA4 were colonized into pcDNA3.1 to construct pcDNA-Sp1 and pcDNA-GATA4 plasmids, respectively, then the recombined plasmids of pcDNA-Sp1 + pGL3-basic and pcDNA-Sp1 + pGL3-miR-122 promoter were cloned into SCs. The fluorescence test indicated that the relative luciferase activity in the pcDNA-Sp1 + pGL3-miR-122 promoter group was significantly higher than the pcDNA-Sp1 + pGL3-basic group. However, the difference between the pcDNA-GATA4 + pGL3-basic plasmid group and pcDNA-GATA4 + pGL3-miR-122-5p promoter plasmid group was not significant (Fig. 2). These results suggested that SP1, but not GATA4, was a transcription factor of miR-122-5p.

Fig. 2
figure 2

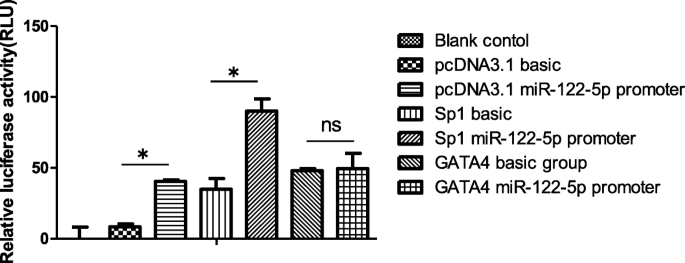

Identification of transcription factors of miR-122-5p in SCs. The fluorescence test indicated that the relative luciferase activity of the Sp1 miR-122-5p promoter group was significantly higher than the Sp1 basic group, which suggests that transcription factor Sp1 promoted the transcription of miR-122-5p (p < 0.05). There was no difference between the GATA4 miR-122-5p promoter group and GATA4 basic group (p > 0.05), which suggests that GATA4 did not promote the transcription of miR-122-5p. Differences between two groups were examined using t - test. *p < 0.05, SEM (n = 3), ns p > 0.05. RLU: relative light units

Full size image

Potential modulating locus of occludin-3’UTR by miR-122-5p

To investigate whether the CACTCCA sequence of the occluding-3’UTR was the modulating locus for miR-122-5p, the synthesized wild-type or mutated occludin-3’UTR with miR-122-5p were cloned into SCs. The results indicated that occludin-3’UTR (wt) or occludin-3ÚTR(mu) cotransfection with miR-122-5p into SCs increased fluorescence expression during continuous observation under an inverted fluorescence microscope in a time-dependent manner and reached a plateau at 48 h, with a transfection rate of 90%. As shown in Fig. 3, dual-luciferase measurement indicated that the relative luciferase activity in the occludin 3′-UTR(wt) + miR-122-5p mimic group was significantly lower than the other groups (p < 0.01). Mutation of the miR-122-5p target site partially rescued luciferase activities. The differences between the occludin 3′-UTR(mu) + miR-122-5p mimic group, occludin 3′-UTR(mu) + miR-122-5p mimic NC group and occludin 3′-UTR(mu) group were not significant (p > 0.05). These results indicated that miR-122-5p modulated the expression of occludin via the ACACTCCA sequence in the occludin-3’UTR.

Fig. 3
figure 3

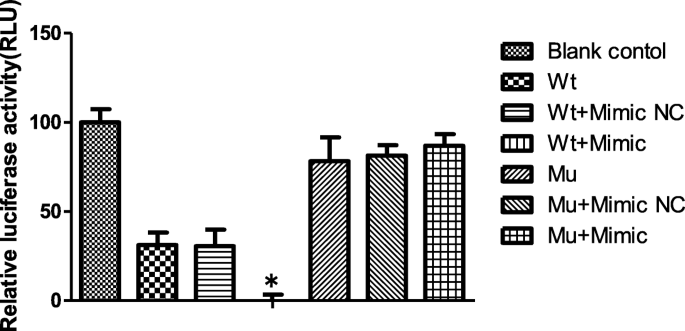

Modulation locus of the occludin-3’UTR by miR-122-5p. The synthesized wild-type and mutant occludin-3’UTR with miR-122-5p were cloned into SCs. The results indicated that the relative luciferase activity in the occludin 3′-UTR(wt) + miR-122-5p mimic group was significantly lower than the other groups (p < 0.01). Mutation of the miR-122-5p target site partially rescued luciferase activities. The differences between the occludin 3′-UTR(mu) + miR-122-5p mimic group, occludin 3′-UTR(mu) + miR-122-5p mimic NC group and occludin 3′-UTR(mu) group were not significant (p > 0.05). These results indicated that miR-122-5p modulated the expression of occludin via the ACACTCCA sequence in the occludin-3’UTR. Differences between two groups were examined using t - test. *p < 0.05, Error bars, SEM (n = 3). NC: negative control, SC:Sertoli cell, UTR: Untranslated Region; RLU: relative light units

Full size image

The effect of miR-122-5p interference on occludin expression

To investigate the interfering effect of miR-122-5p on the expression of occludin in SCs, the miR-122-5p mimic NC, miR-122-5p mimic, miR-122-5p inhibitor NC and miR-122-5p inhibitor were transfected into SCs for 48 h, and the total proteins and total RNAs were extracted. The expression of miR-122-5p and occludin mRNA in SCs was measured using qRT-PCR, and occludin protein was measured using Western blots. The results indicated that the expression of miR-122-5p in the miR-122-5p mimic group was 1.5-fold higher than the blank control group, 2.43-fold higher than the miR-122-5p inhibitor group, and significantly higher than the other groups (p < 0.01) (Table 2). Occludin mRNA and protein in the miR-122-5p mimic group were significantly lower than the other groups (p < 0.05). The expression of occludin mRNA and occludin protein in the miR-122 inhibitor group was significantly higher than the other groups (p < 0.05) (Fig. 4). These results indicated that miR-122-5p reduced the expression of occludin in SCs.

Table 2 The expression of miR-122-5p and occludin in SCs
Full size table
Fig. 4
figure 4

The expression of occludin in SCs. 1. Blank control group; 2. miR-122-5p mimic NC group; 3. miR-122-5p mimic group; 4. miR-122-5p inhibitor NC group; 5. miR-122-5p inhibitor group. The occludin protein in the miR-122-5p mimic group was significantly lower than the other groups (p < 0.05). The occludin protein in the miR-122 inhibitor group was significantly higher than the other groups (p < 0.05). These results indicated that miR-122-5p reduced the expression of occludin. SCs: Sertoli cells

Full size image

Expression of mir-122-5p by Sertoli cells correlates with the assembly of the inter-Sertoli TJ permeability barrier in vitro

To investigate whether miR-122-5p modulated the TJs, the miR-122-5p mimic and inhibitor were transfected into SCs. The function of SCs on the TJ barrier were quantified using the TER across the SC monolayers on Matrigel-coated bicameral units. The TERs were measured on days 1, 2, 3, 4, 5, 6, 7 and 8. Data are shown in Fig. 5. There were no differences between the three groups from day 1 to day 3 (p > 0.05). No difference was found between the blank group and miR-122-5p inhibitor group from day 4 to day 8 (p > 0.05). However, the TER of the miR-122-5p mimic group was significantly lower than the other two groups after day 4 (p < 0.05). This result suggested that the miR-122-5p mimic inhibited the assembly of the inter-Sertoli TJ permeability barrier in vitro.

Fig. 5
figure 5

The effect of miR-122-5p on the inter-Sertoli TJ permeability barrier in vitro. The miR-122-5p mimic and inhibitor were transfected into SCs. The functionality of SCs on the TJ barrier was quantified as the TER across the Sertoli cell epithelium on Matrigel-coated bicameral units, and the TER was measured on days 1, 2, 3, 4, 5, 6, 7 and 8. There were no differences between the three groups from day 1 to day 3 (p > 0.05). No difference was found between the blank group and miR-122-5p inhibitor group from day 4 to day 8 (p > 0.05). However, the TER of the miR-122-5p mimic group was significantly lower than the other two groups beginning on day 4 (p < 0.05). This result suggests that the miR-122-5p mimic inhibits the assembly of the inter-Sertoli TJ permeability barrier in vitro. The difference between two groups was compared with t-test. *p < 0.05, Error bars, SEM (n = 3). TER: trans-epithelial resistance

Full size image

Discussion

There are numerous reports on miR-122-5p from other laboratories [29,30,31,32], and our previous study demonstrated the correlation between the expression of miR-122-5p and occludin protein in sperm and exfoliative cells of semen [24]. To further investigate the modulating mechanism of miR-122-5p on occludin, an miR-122-5p mimic and miR-122-5p inhibitor were transfected into SCs. The results indicated that miR-122-5p mimic significantly decreased the expression of occludin mRNA and protein, which suggests the miR-122-5p modulates the transcription and translation of occludin. Occludin is an important assembling protein of TJs [31], and it is the basis of TJ formation for Sertoli cells of the spermatogenetic epithelium and determines the normal process of spermatogenesis [32]. The present study indicated that miR-122-5p modulated the expression of occludin via the ACACTCCA sequence of the occludin-3’UTR.

TJs are the major component of the BTB [16], and abnormal TJs affect spermatogenesis [19, 33]. Our previous study indicated that the expression of miR-122-5p correlated with spermatogenesis. Therefore, we hypothesized that miR-122-5p would modulate spermatogenesis via modulation of TJ in the BTB. The present study constructed an in vitro cellular model in which TJs caused a differential in permeability (TER; Fig. 5) on day 4 between the experimental groups and the control group [34]. The miR-122-5p mimic or miR-122-5p inhibitor was transfected into the SCs of mice, and the TER at different times was measured. The results showed that the miR-122-5p mimic inhibited assembly of the inter-Sertoli TJ permeability barrier in vitro, which suggests that miR-122-5p modulates the formation of TJs. This modulation may be one mechanism of the modulation of spermatogenesis.

Sp1 belongs to the Sp protein family (Sp1 ~ Sp9), and it is a transcription factor that exhibits the strongest activity. Sp1 modulates the transcription of genes and multiple posttranslational modifications, including phosphorylation, methylation, glycosylation and acetylation [35, 36]. Sp1 is also closely correlated with spermatogenesis via modulation of the expression of multiple genes during cellular proliferation and embryonic development [37]. A transcription factor in the zinc-finger region of Sp1 binds to the GC or GT elements of target gene promoters in many male germ cells, and these promoters are expressed during the spermatogenesis [38]. Regions enriched with glutamine and serine/threonine in Sp1 coordinate with the modulator to produce a polyprotein preinitiation complex, which is very important to the mediation of transcriptional activation in male germ cells [39, 40]. Sp1 is involved in the modulation of the activities of the occludin promoter by Krüpple-like factor 4 in the blood-tumor barrier. The present study indicated that Sp1 enhanced the activity of miR-122-5p. Because Sp1 is related to spermatogenesis and modulates the transcription of miR-122-5p and occludin, we hypothesized that Sp1 would modulate TJs via modulation of the transcriptional activity of miR-122-5p.

Conclusion

In summary, the present study indicated that Sp1 enhanced the transcriptional activity of miR-122-5p, inhibited the expression of occludin via the ACACTCCA sequence in the occludin-3’UTR and decreased the formation of TJs in the BTB. Therefore, miR-122-5p can regulate spermatogenesis via the Sp1-miR-122-5p-occludin-TJ axis.

Availability of data and materials

Yes

Abbreviations

anti-WT1:

Anti-Wilms tumor protein1

BCA:

Bicinchoninic acid

BTB:

Blood-testis barrier

DMEM:

Dulbecco’s modified Eagle medium

miRs:

MicroRNAs

Mrna:

Messenger Ribonucleic Acid

NC:

Negative control

PBS:

Phosphate buffer saline

TJ:

Tight junction

PCR:

Polymerase Chain Reaction

RNA:

Ribonucleic Acid

RT:

Reverse transcription

SC:

Sertoli cell

TER:

Trans-epithelial resistance

TTBS:

Trimethylaminomethane tween

References

  1. Picao-Osorio J, Johnston J, Landgraf M, Berni J, Alonso CR. MicroRNA-encoded behavior in drosophila. Science. 2015;350(6262):815–20.

    Article  CAS  Google Scholar

  2. Ran MX, Zhou YM, Liang K, Wang WC, Zhang Y, Zhang M, Yang JD, Zhou GB, Wu K, Wang CD, et al. Comparative analysis of MicroRNA and mRNA profiles of sperm with different freeze tolerance capacities in boar (Sus scrofa) and Giant panda (Ailuropoda melanoleuca). Biomolecules. 2019;9(9):e432.

    Article  Google Scholar

  3. Nixon B, De Iuliis GN, Dun MD, Zhou W, Trigg NA, Eamens AL. Profiling of epididymal small non-protein-coding RNAs. Andrology-Us. 2019;7(5):669–80.

    CAS  Google Scholar

  4. Chu C, Zhang YL, Yu L, Sharma S, Fei ZL, Drevet JR. Epididymal small non-coding RNA studies: progress over the past decade. Andrology-Us. 2019;7(5):681–9.

    CAS  Google Scholar

  5. Cui JH, Xie X. Non-coding RNAs: emerging regulatory factors in the derivation and differentiation of mammalian parthenogenetic embryonic stem cells. Cell Biol Int. 2017;41(5):476–83.

    Article  CAS  Google Scholar

  6. de Mateo S, Sassone-Corsi P. Regulation of spermatogenesis by small non-coding RNAs: role of the germ granule. Semin Cell Dev Biol. 2014;29:84–92.

    Article  Google Scholar

  7. Dupont C, Kappeler L, Saget S, Grandjean V, Levy R. Role of miRNA in the Transmission of Metabolic Diseases Associated With Paternal Diet-Induced Obesity. Front Genet. 2019;10:337.

  8. Fang N, Cao CC, Wen YJ, Wang XL, Yuan SQ, Huang XB. MicroRNA profile comparison of testicular tissues derived from successful and unsuccessful microdissection testicular sperm extraction retrieval in non-obstructive azoospermia patients. Reprod Fert Develop. 2019;31(4):671–82.

    Article  CAS  Google Scholar

  9. Wang Z, Wang X. miR-122-5p promotes aggression and epithelial-mesenchymal transition in triple-negative breast cancer by suppressing charged multivesicular body protein 3 through mitogen-activated protein kinase signaling. J Cell Physiol. 2019;235(3):2825–35.

    Article  Google Scholar

  10. Cortez-Dias N, Costa MC, Carrilho-Ferreira P, Silva D, Jorge C, Calisto C, et al. Circulating miR-122-5p/miR-133b ratio is a specific early prognostic biomarker in acute myocardial infarction. Circ J. 2016;80(10):2183–91.

    Article  CAS  Google Scholar

  11. Jiang M, Ma W, Gao Y, Jia K, Zhang Y, Liu H, et al. IL-22-induced miR-122-5p promotes keratinocyte proliferation by targeting Sprouty2. Exp Dermatol. 2017;26(4):368–74.

    Article  CAS  Google Scholar

  12. Li J, Zhao R, Fang R, Wang J. miR-122-5p inhibits the proliferation of melanoma cells by targeting NOP14. Nan Fang Yi Ke Da Xue Xue Bao. 2018;38(11):1360–5.

    PubMed  Google Scholar

  13. Liu YH, Liu JL, Wang Z, Zhu XH, Chen XB, Wang MQ. MiR-122-5p suppresses cell proliferation, migration and invasion by targeting SATB1 in nasopharyngeal carcinoma. Eur Rev Med Pharmacol Sci. 2019;23(2):622–9.

    PubMed  Google Scholar

  14. Pei ZJ, Zhang ZG, Hu AX, Yang F, Gai Y. miR-122-5p inhibits tumor cell proliferation and induces apoptosis by targeting MYC in gastric cancer cells. Pharmazie. 2017;72(6):344–7.

    CAS  PubMed  Google Scholar

  15. Wen DY, Huang JC, Wang JY, Pan WY, Zeng JH, Pang YY, et al. Potential clinical value and putative biological function of miR-122-5p in hepatocellular carcinoma: a comprehensive study using microarray and RNA sequencing data. Oncol Lett. 2018;16(6):6918–29.

    CAS  PubMed  PubMed Central  Google Scholar

  16. Ni FD, Hao SL, Yang WX. Multiple signaling pathways in Sertoli cells: recent findings in spermatogenesis. Cell Death Dis. 2019;10(8):e541.

    Article  Google Scholar

  17. Yan M, Li LX, Mao BP, Li HT, Li SYT, Mruk D, et al. mTORC1/rpS6 signaling complex modifies BTB transport function: an in vivo study using the adjudin model. Am J Physiol Endocrinol Metab. 2019;317(1):E121.

    Article  CAS  Google Scholar

  18. Wang XX, Zhang Y, Li XY, Li J, Tang JX, Li YY, et al. Kruppel-like factor 6 regulates Sertoli cell blood-testis barrier. Front Biosci (Landmark Ed). 2019;24:1316–29.

    Article  CAS  Google Scholar

  19. Edelsztein NY, Rey RA. Importance of the androgen receptor signaling in gene transactivation and Transrepression for pubertal maturation of the testis. Cells. 2019;8(8):e861.

    Article  Google Scholar

  20. Tanaka M, Chiba K, Okada K, Fujisawa M. Effect of mirabegron on tight junction molecules in primary cultured rat Sertoli cells. Andrologia. 2019;51(5):e13241.

    Article  Google Scholar

  21. Wang X, Zhang X, Hu L, Li H. Exogenous leptin affects sperm parameters and impairs blood testis barrier integrity in adult male mice. Reprod Biol Endocrin. 2018;16(1):e55. Published 2018 May 31. https://doi.org/10.1186/s12958-018-0368-4.

    Article  CAS  Google Scholar

  22. Ahn C, Shin DH, Lee D, Kang SM, Seok JH, Kang HY, et al. Expression of claudins, occludin, junction adhesion molecule a and zona occludens 1 in canine organs. Mol Med Rep. 2016;14(4):3697–703.

    Article  CAS  Google Scholar

  23. Al-Sadi R, Khatib K, Guo SH, Ye DM, Youssef M, Ma T. Occludin regulates macromolecule flux across the intestinal epithelial tight junction barrier. Am J Physiol Gastrointest Liver Physiol. 2011;300(6):G1054–64.

    Article  CAS  Google Scholar

  24. Zhu M, Fei L, Li D, Chen D. Correlation analysis of miR-122-5p and Occludin with sperm density in Oligospermia Patients' sperm. Clin Lab. 2019;65(3):352–60.

    Google Scholar

  25. Mruk DD, Cheng CY. An in vitro system to study Sertoli cell blood-testis barrier dynamics. Methods Mol Biol. 2011;763:237–52.

    Article  CAS  Google Scholar

  26. Zhu M, Lu J, Shen J, Fei L, Chen D. A 22-amino-acid peptide regulates tight junctions through occludin and cell apoptosis. PeerJ. 2020;8:e10147.

    Article  Google Scholar

  27. Li ZE, Xu HL, Liu X, Hong Y, Lou H, Liu H, et al. GDF11 inhibits cardiomyocyte pyroptosis and exerts cardioprotection in acute myocardial infarction mice by upregulation of transcription factor HOXA3. Cell Death Dis. 2020;11(10):e917.

    Article  Google Scholar

  28. Martin TA, Jordan N, Davies EL, Jiang WG. Metastasis to bone in human Cancer is associated with loss of Occludin expression. Anticancer Res. 2016;36(3):1287–93.

    CAS  PubMed  Google Scholar

  29. Papadopoulos D, Shihan M, Scheiner-Bobis G. Physiological implications of DHEAS-induced non-classical steroid hormone signaling. J Steroid Biochem. 2018;179:73–8.

    Article  CAS  Google Scholar

  30. Sharpe RM, McKinnell C, Kivlin C, Fisher JS. Proliferation and functional maturation of Sertoli cells, and their relevance to disorders of testis function in adulthood. Reproduction. 2003;125(6):769–84.

    Article  CAS  Google Scholar

  31. McCabe MJ, Foo CF, Dinger ME, Smooker PM, Stanton PG. Claudin-11 and occludin are major contributors to Sertoli cell tight junction function, in vitro. Asian J Androl. 2016;18(4):620–6.

    Article  CAS  Google Scholar

  32. Chen Y, Wang J, Pan C, Li D, Han X. Microcystin-leucine-arginine causes blood-testis barrier disruption and degradation of occludin mediated by matrix metalloproteinase-8. Cell Mol Life Sci. 2018;75(6):1117–32.

    Article  CAS  Google Scholar

  33. Wei YH, Gao Q, Niu PX, Xu K, Qiu YQ, Hu YQ, et al. Integrative proteomic and Phosphoproteomic profiling of testis from Wip1 phosphatase-knockout mice: insights into mechanisms of reduced fertility. Mol Cell Proteomics. 2019;18(2):216–30.

    Article  CAS  Google Scholar

  34. Fisher D, Mosaval F, Tharp DL, Bowles DK, Henkel R. Oleanolic acid causes reversible contraception in male mice by increasing the permeability of the germinal epithelium. Reprod Fert Develop. 2019;31(10):1589–96.

    Article  CAS  Google Scholar

  35. Arige V, Agarwal A, Khan AA, Kalyani A, Natarajan B, Gupta V, et al. Regulation of monoamine oxidase B gene expression: key roles for transcription factors Sp1, Egr1 and CREB, and microRNAs miR-300 and miR-1224. J Mol Biol. 2019;431(6):1127–47.

    Article  CAS  Google Scholar

  36. Banerjee S, Sangwan V, McGinn O, Chugh R, Dudeja V, Vickers SM, et al. Correction: Triptolide-induced cell death in pancreatic cancer is mediated by O-GlcNAc modification of transcription factor Sp1. J Biol Chem. 2019;294(27):10739.

    Article  Google Scholar

  37. Toyoda S, Yoshimura T, Mizuta J, Miyazaki J. Auto-regulation of the Sohlh1 gene by the SOHLH2/SOHLH1/SP1 complex: implications for early spermatogenesis and oogenesis. PLoS One. 2014;9(7):e101681.

    Article  Google Scholar

  38. Thomas K, Wu J, Sung DY, Thompson W, Powell M, McCarrey J, et al. SP1 transcription factors in male germ cell development and differentiation. Mol Cell Endocrinol. 2007;270(1–2):1–7.

    Article  CAS  Google Scholar

  39. Persengiev SP, Raval PJ, Rabinovitch S, Millette CF, Kilpatrick DL. Transcription factor Sp1 is expressed by three different developmentally regulated messenger ribonucleic acids in mouse spermatogenic cells. Endocrinology. 1996;137(2):638–46.

    Article  CAS  Google Scholar

  40. Sze KL, Lee WM, Lui WY. Expression of CLMP, a novel tight junction protein, is mediated via the interaction of GATA with the Kruppel family proteins, KLF4 and Sp1, in mouse TM4 Sertoli cells. J Cell Physiol. 2008;214(2):334–44.

    Article  CAS  Google Scholar
